Fire Alarm Systems
Fire Alarm Systems have the potential to save lives, therefore it would be necessary and your duty to ensure you are getting a top of the range Fire alarm System from a Competent installer. A reliable, effective and compliant Fire Alarm system is an essential investment for all businesses who want to protect their people and property.
​
Cox Security Systems Ltd. are specialists in the installation and maintenance of Commercial fire alarm systems and we are strictly compliant with the Irish Standards
I.S. 3218:2024
​
we can design, install, commission and maintain a solution for you which is fully compliant with all current regulations.
I.S.3218:2024
​
Why do I need a fire alarm?
If a fire breaks out at your premises, being notified as soon as possible is paramount. The sooner you know about a fire, the quicker it can be dealt with, and the lower the risk of potentially disastrous consequences.
What are the key benefits of fire alarm systems?
-
Early detection
Ready to alert you to the first signs of fire on your premises
-
Instant warning
Raising the alarm to those in immediate danger -
24/7 monitoring (if Required)
Alerting keyholders and the emergency services​
​
-
Life safety
Giving occupants the best chance of staying safe
-
Critical compliance
Meeting your insurance and legal responsibilities
-
Business continuity
Minimising disruption to the running of your business
​
How do fire alarms work?
Fire alarms are designed to detect the early signs of a fire (smoke and heat) and notify building occupants of the need to evacuate immediately. Systems are typically made up of detection devices such as heat detectors and smoke alarms, all of which are connected to a central fire alarm panel. Manual call points are normally located at final exists and the changing of floor levels. Sounders are located through out the building to achieve the correct decibel levels in the event of the fire alarm being triggered.
Apollo XP95 Optical Smoke Detector
Apollo XP95 Heat Detector
Apollo Call Point
External Sounder Beacon with Timer
Internal Sounder Beacon with Timer

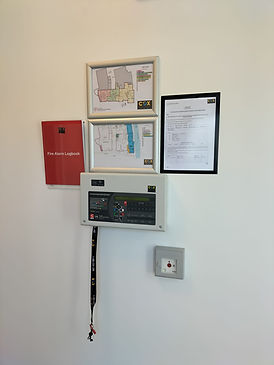

C-TEC XFP 1 Loop 16 Zone Panel
Advanced MX-5101 1 Loop Fire Alarm Panel
Are there different types of fire alarms?
There are two main types of fire alarm; addressable fire alarm systems and conventional fire alarm systems. Addressable systems are when all linked devices have an ‘address’ or location programmed into the system. This means if a device is triggered, the panel will show exactly which device it was and where it is in the building. Conventional systems don’t allow you to pinpoint which device has been triggered. Instead, areas of the building are sectioned into ‘zones.’
What if my building has no cable in place for a fire alarm system?
if it is not possible to install cables and the building is of a finished standard, we can use EMS wireless fire alarm range.
SmartCell is the newly developed “smart” fire system designed for smaller properties and SME’s.
With “EMS” technology inside, SmartCell provides big system features, benefits and protection in a compact, yet powerful system, that supports up to 64 fire devices. Using next generation wireless technology, SmartCell is a connected system that allows users and service companies full remote access and diagnostics using an optional “on board” communications module. Any activity on SmartCell can be transmitted by text or email, almost instantaneously giving up to the minute information on what’s happening in the protected building.
What are my legal responsibilities?
As an employer, business owner or landlord, you are classed as the Responsible Person. This means you hold the legal responsibility to ensure a sufficient level of fire protection is provided at your premises.
At Cox Security Systems Ltd, we are trained and qualified to advise you on your fire safety needs. This includes the design, installation and maintenance of fire alarm systems that meet the latest fire industry standards. We work to the requirements of Irish Standard I.S.3218:2024
How often should i get my fire alarm Serviced?
Regular servicing and repair necessary in order to maintain the efficient operation of the installed system.​
-
4 detection zones or less which incorporate a combination of 20 or less automatic detection devices and call points, periodic service visits may occur at least two times in the year at intervals of no less than 4 months and no greater than 8 months, provided the person having control carries out the daily and weekly checks .For non-residential systems of
-
Otherwise, periodic service visits shall be scheduled to occur at least four times in a year at intervals of no greater than 4 months. Periodic service visits shall be recorded. The model schedule of service and testing should be affixed adjacent to the fire alarm control panel.
During the periodic visit what checks and tests should be completed?
During each periodic service visit the following checks and tests shall be completed:
1) entries in the logbook shall be checked and any necessary action taken;
2) batteries, including reserves, for CIE and power supplies for inputs and outputs shall be tested as specified by the manufacturer to verify that they are satisfactory for a further period of use by taking measurements that are indicative of the conditions of each cell by the use of a proprietary load test meter specific for the purpose;
3) batteries shall be replaced within the period of the service life stipulated by the battery manufacturer, and they shall be indelibly marked with the date of installation;
4) the fault monitoring of power supplies serving inputs and outputs by the CIE shall be tested;
5) all functions of the CIE shall be tested
​
-
Attention should be given to areas where alterations to the system have been carried out since the last service.
-
During periodic service visits a percentage of the input devices shall be tested such that at the end of the annual period all devices have been tested and records have been maintained. Evidence of all devices tested during each periodic service visit shall be provided by a competent person.
-
The operation of alarm devices and visual alarm indicators shall be checked such that at the end of the annual period all devices have been tested.
-
Defects shall be recorded in a logbook. These shall be reported to the person having control for corrective action.
-
On completion of a periodic inspection, a service report shall be issued to the person having control.
